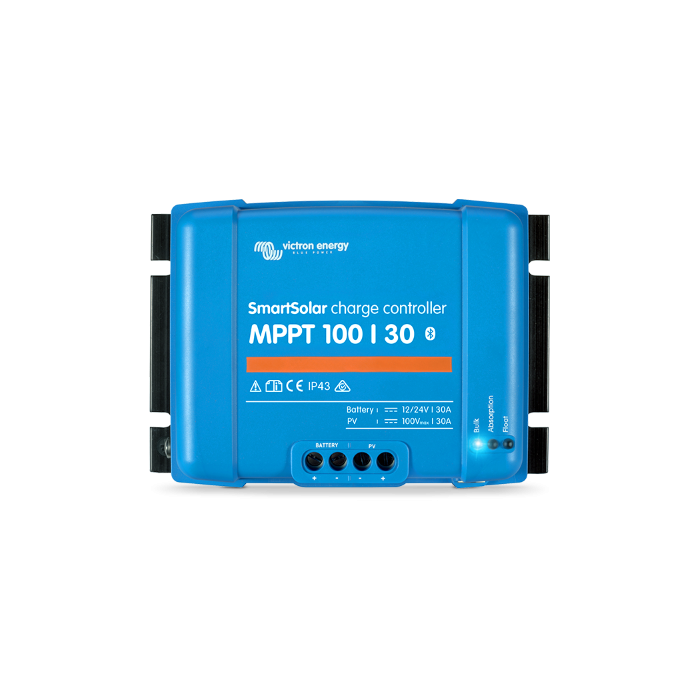

Victron Energy SmartSolar MPPT 100/30 (12V/24V-30A) - With Bluetooth

Bluetooth Smart built-in: dongle not needed

The wireless solution to set-up, monitor and update the controller using Apple and Android Smartphones, tablets or other devices.

VE.Direct

For a wired data connection to a Color Control Panel, Venus GX, PC or other devices.

Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximise energy harvest by locking to the optimum MPP.

Outstanding Conversion Efficiency

No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40degrees.

Flexible Charge Algorithm

Fully programable charge algorithm (see victron energy website for more information) and eight pre-programmed algorithms, selectable with a rotary switch (please see manual for details)

Extensive Electronic Protection

Over-Temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PC reverse current protection.

Internal temperature Sensor

Compensates absorption and float charge voltage for temperature.

Real-time date display options

- Apple and Android smartphones, tablets and other devices. - Color Control Panel
